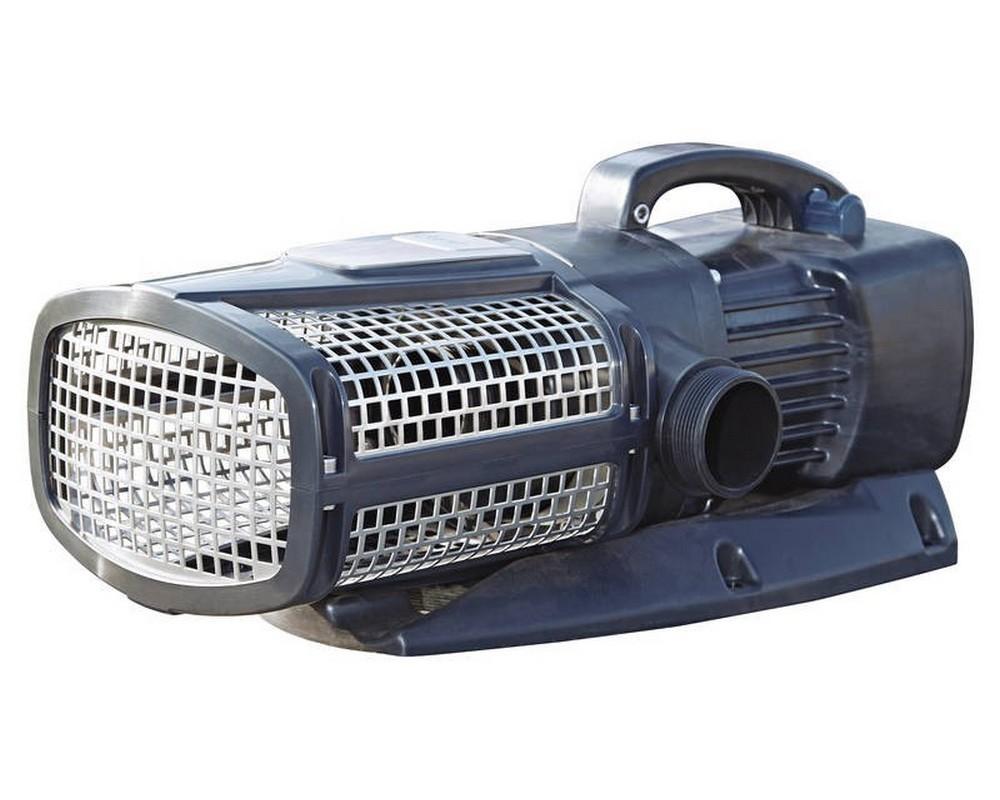

Oase Aquamax ECO Expert EGC 20000 12v
PP3422The OASE AquaMax Expert 20000/12 V is a very powerful filter and watercourse pump. With safe 12 V technology, perfect for use in swimming and bathing ponds. It delivers up to 18,600 l / h per hour and has a maximum delivery height of 4.30 m. The OASE AquaMax Expert 20000 has a compact housing made of high-quality plastic with stainless steel elements and is extremely stable. It conveys dirt particles up to 11 mm in size, can be set up dry, can be regulated electronically and is fully suitable for wintering. The OASE AquaMax Expert 20000 does not mind complete freezing. The filter and watercourse pump has a power consumption of max. 260 watts. It is supplied complete with a universal stepped hose adapter from 1 "to 2". The handle, which is optimally aligned with the center of gravity of the pump, makes it easier to transport and align when setting up. Guarantee 3 years plus 2 years requirement guarantee.
- Ideal for demanding filter systems used in large watercourses and waterfalls, while the 12 V version is perfect for swimming ponds and natural pools, even if they contain sea water!
- Extreme performance with an energy-efficient pump capacity
- Very high efficiency with excellent pump capacity for coarse debris particles up to 11 mm in size
- Robust and durable stainless steel housing
- Unique patented frost protection down to -20 ° C
- Can be set up underwater & dry installed
- Patented "Seasonal Flow Control" for intelligent and environmentally-conscious regulation of flow rate and delivery head
- Innovative Environmental Function Control: Optimal device protection as the system shuts off automatically if it runs dry or if there's a blockage
- MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level
- System requirements: To use the EGC functions, an InScenio EGC Controller Home / Cloud, InScenio FM-Master EGC Home / Cloud, InScenio FM-Master WiFi EGC or InScenio FM-Master WiFi Version 2.0 or later is required
- Excellent efficiency; outstanding handling of coarse debris of particles up to 11 mm in size
- With safe 12 V technology perfect for implementation in swim ponds and bathing ponds
Technical Data
| Dimensions (L x W x H) | mm | 490 x 240 x 210 |
| Rated voltage (primary, secondary) | 220 - 240 V / 50/60 Hz, 12 V / DC | |
| Power consumption | W. | 30-260 |
| Power cable length | m | 8.00 |
| Cable length 12 V device (with power unit) | m | 2.50 (power unit) + 8.00 |
| Net weight | kg | 14.60 |
| Limited warranty | Years | 3 + 2 |
| Max. Flow rate | l / min | 321 |
| Max. Flow rate | l / h | 19300 |
| Max. Head height, meters | m | 4.60 |
| Outlet size | G 2 | |
| Inlet size | G 2 | |
| Pants connection | mm | 38/50 |
| Pants connection | 1 ½ ", 2" | |
| Filter intake surface | cm² | 1060 |
| Max. Coarse debris displacement | mm | 11 |
| Connection EGC | Yes | |
| Electronic adjustment | Yes | |
| Usage type | Submersed or inline capable |
